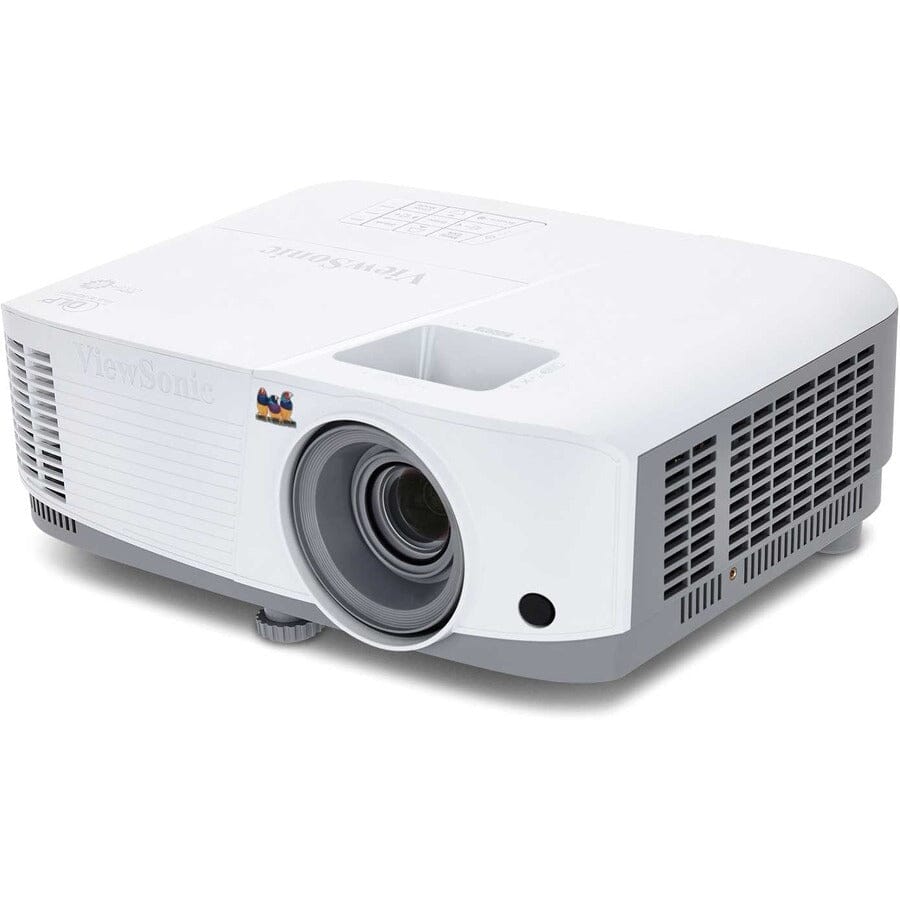

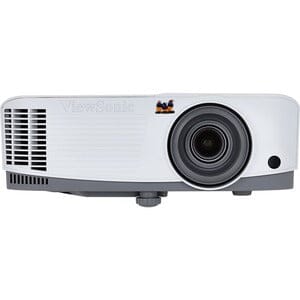

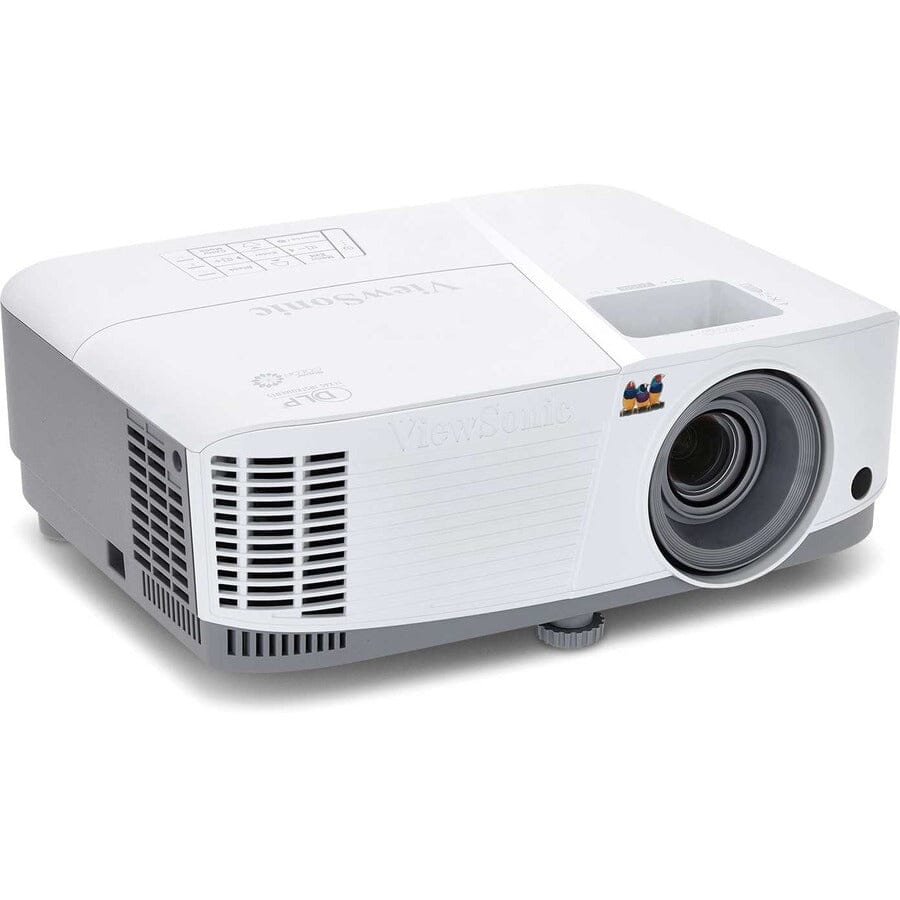

ViewSonic PA503W 3800-Lumen WXGA DLP Projector
- SKU: PA503W
Enjoy bright images in many environments with the ViewSonic PA503W 3800-Lumen WXGA DLP Projector. Its 3800 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1280 x 800 WXGA native resolution is suitable for displaying many file and document types, and it will accept video signals up to Full HD (1920 x 1080) for higher resolution sources. The projector features a 1.55 to 1.7:1 throw ratio, which will allow you to place it near the back of the room in many installations.
The PA503W has one HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has two VGA inputs for analog sources, and its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source. Analog audio input and output and an onboard 2W speaker ensures that audio accompanies your video. The projector includes a VGA cable and an IR remote control.
- Brightness of 3800 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.55 to 1.7:1 Throw Ratio
- HDMI, Composite Video, 2 VGA Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- 2-Watt Speaker
- IR Remote Included
ViewSonic PA503W Specs
|Native Chip Resolution||1280 x 800 (WXGA)|
|Supported Resolutions||Minimum: VGA - 640 x 480
Maximum: Full HD 1080p - 1920 x 1080
|Maximum Brightness||3800 Lumens|
|Aspect Ratio||Native: 16:10|
|Dynamic Contrast Ratio||22,000:1|
|Color Depth||10-Bit (1.07 Billion Colors)|
|Scan||Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz
|Optical Zoom||Manual: 1.1x|
|Throw Distance||3.248 - 36.024' / 0.99 - 10.98 m|
|Throw Ratio||1.55 to 1.7:1|
|Projection Size||30 - 300" / 76.20 - 762.00 cm|
|Keystone Correction||Vertical: ± 40°|
|Multi-Input Support (PIP/PBP)||Not Specified by Manufacturer|

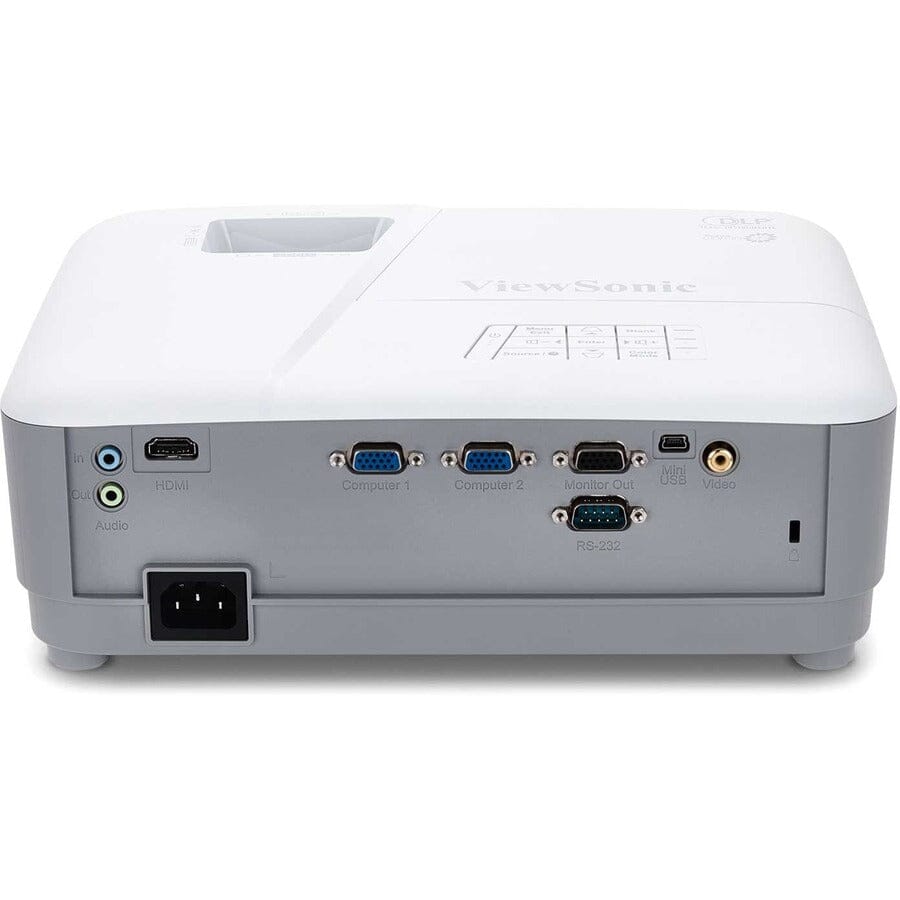

|Inputs/Outputs||1 x HDMI Audio, Video Input
2 x DE-15/DB-15 (VGA) Video Input
1 x RCA (Composite) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x DE-15/DB-15 (VGA) Video Output
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Mini-USB 2.0 Data Input
1 x DE-9/DB-9 (RS-232) Control Input
|Mobile App Compatible||No
*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
|Lamp Power||190 W|
|Expected Lamp Life||Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours
|Security||Cable Lock Slot|
|AC Input Power||120 to 240 VAC, 50 / 60 Hz|
|Power Consumption||Medium Brightness: 260 W
Standby Mode (Lamp Off): < 0.5 W
|Dimensions (W x H x D)||11.6 x 4.3 x 8.6" / 294.0 x 110.0 x 218.0 mm|
|Weight||4.89 lb / 2.22 kg|
|Package Weight||7.06 lb|
|Box Dimensions (LxWxH)||14.3 x 11.8 x 7.55"|
